UNIT COST WAS
NOW $324.50 Each Including GST
CARTON COST WAS
NOW $324.50 Including GST
25 per carton | Carton Code: AX115P25

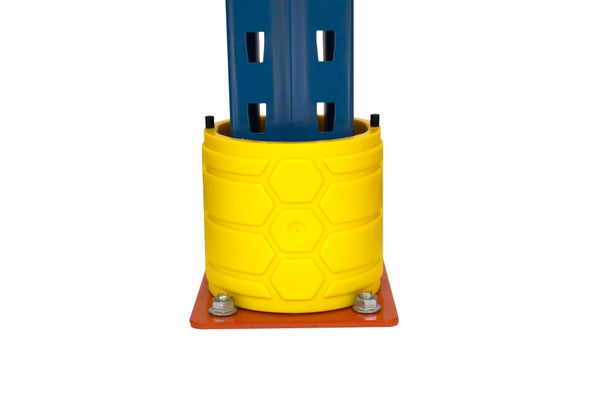

The VISIPLAS AX115 Pallet Deflector is designed to mitigate the effect of impacts against rear and front pallet racking uprights. The high visibility Pallet Deflector can reduce rack maintenance costs by up to 90% for the rear pallet rack upright. The competitively priced AX115 rack accessory is suitable for pallet rack uprights from 75mm to 100mm front width.
Fast and easy to install, the Pallet Rack Deflectors are made of an injection molded, high-impact plastic compound with energy absorbing and self-reforming properties. They can be used with pallet racking from all major manufacturers, including systems with roll-formed, structural or tubular construction. Their safety yellow colour ensures high visibility, enhancing the forklift driver’s ability to identify the upright’s location.

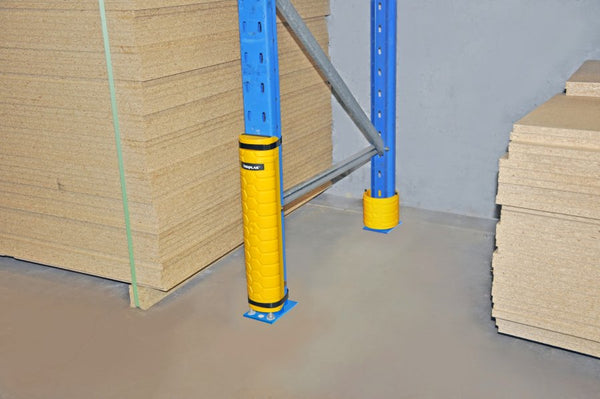

The Pallet Rack Deflectors were created to protect the rear uprights from damage caused by forklift operators not entering the rack squarely with a load. Without the Deflector the pallet can strike the upright as it is pushed into the rack, damaging it.
The Deflectors are delivered in two parts that are placed around the front and back of a rack upright to encircle it. Interlocking tab-and-slot construction ensures the two pieces meet precisely; they are then secured together with the insertion of a pin through guide holes within the alignment tabs. Once in place, the deflectors help absorb the impact of a pallet and simultaneously redirect its angle of entry to the proper placement position on the floor.

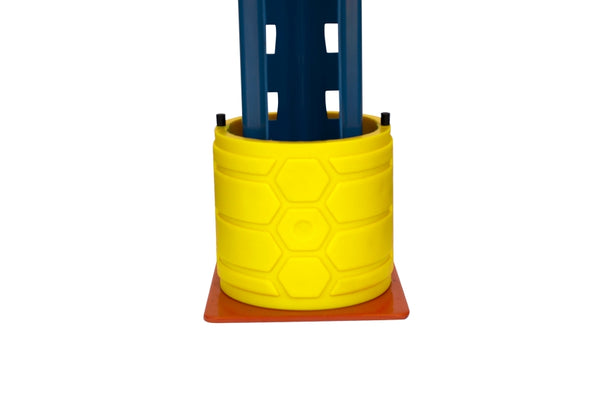

The AX115 for rear uprights has a 115mm internal diameter, allowing ample room to be placed over most anchoring footplates of various manufacturer’s uprights.
See the short video showing installation and operation of the deflectors.
The AX115 measures 120mm tall and is supplied in cartons of 25 Deflectors. 3 assembly pins are provided with each deflector – 2 are required for installation plus 1 spare.
